LONDON: The world faces an oil supply crunch within the next five years, British business leaders led by Virgin tycoon Richard Branson warned on Wednesday.
The rate at which oil is produced risks hitting a peak by 2015, sparking a surge in crude prices and living costs, said a report from the UK Industry Taskforce on Peak Oil & Energy Security (ITPOES), of which Branson is a member.
The report, entitled 'The Oil Crunch - a wake up call for the UK economy', urged the formation of new organisation to address the issue, with members representing the British government, businesses and consumers.
"The UK Industry Taskforce on Peak Oil and Energy Security (ITPOES) finds that oil shortages, insecurity of supply and price volatility will destabilise economic, political and social activity potentially by 2015," the report said.
"Peak oil refers to the point where the highest practicable rate of global oil production has been achieved and from which future levels of production will either plateau, or begin to diminish.
"This means an end to the era of cheap oil," added the report from the taskforce, whose members include British tycoon Branson and Ian Marchant, head of Scottish & Southern Energy.
ITPOES forecast global oil output would reach a plateau at fewer than 95 million barrels per day potentially by 2015. That compared with 2008 global production of 85 million bpd.
"The taskforce states the impact of peak oil will include sharp increases in the cost of travel, food, heating and retail goods," the report added.
"It finds that the transport sector will be particularly hard hit, with more vulnerable members of society the first to feel the impact."
With Britain facing a national election by June, the grouping also warned that any new government must deal with the looming oil crunch.
"The taskforce warns that the UK must not be caught out by the oil crunch in the same way it was with the credit crunch and states that policies to address peak oil must be a priority for the new government formed after the election."
It added: "Unless we do so, we face a situation during the term of the next government where fuel price unrest could lead to shortages in consumer products and the UK's energy security will be significantly compromised."
Supply-side constraints - lack of construction capacity, oil rigs and skilled manpower - would all contribute towards peak oil, according to the taskforce.
The group also called for the development of alternative methods to powering transport.
Branson, founder of Virgin Group, added that businesses and the government must work alongside each other.
"Working together, we must ensure that the government takes action to address the impact of the oil crunch and ensure the UK is better prepared to withstand higher and more volatile oil prices," Branson said.
"UK competitiveness will be hampered unless we can develop viable, affordable and secure long term sources of alternative energy."
In recent years, oil prices have been extremely volatile, spiking to record heights above 147 dollars per barrel in July 2008, before plunging to 32 dollars per barrel as a global recession slammed energy demand.
World oil prices have since recovered ground to trade between 70-80 dollars as the market was boosted by signs of global economic recovery. - AFP/de
Sunday, April 3, 2011
Saturday, March 12, 2011
Expandable Sand screens
The Open-hole applications testing multi-zone completions, expandable tools to new limits.
Completions have never been simple. But for today’s wells, the industry has had to push the envelope to develop game-changing technologies to operate in increasingly complex environments while reducing rig time, performing downhole functions in a single trip of the workstring and addressing the critical issue of sand control. Multi-zone completion technologies, along with expandable tools, are increasingly being deployed in nearly every arena worldwide, from long land horizontals to shale and tight gas to the deepest waters.
“The days where an operator drills one well to target one specific zone is becoming more the exception than the norm,” said Bryan Stamm, technical manager,Schlumberger Sand Management Division. “As technologies for multi-zone completions become more and more mainstream, whether for stacked, single-trip multi-zone, multi-stage fracturing or intelligent completions, we’re starting to see the industry become more comfortable with this approach.”
In cased holes, where multi-zone technology is more mature, the emphasis has been on efficiency, using packers and perforations to produce each zone, Mr Stamm continued.
“When it comes to open hole, I would say that is where the industry has faced some very rapid advancements in recent years, driven mainly by advances in horizontal drilling,” he said. Historically, sand-prone open-hole reservoirs could be completed only in one zone using a gravel packing technique, he noted. Multi-zone completions can now be accomplished with stand-alone sand screens.....(Click here)
Sunday, February 13, 2011
looking for Career in oil and gas industry?
Job Openings to Asian
The Experience the challenges, rewards and a world of opportunity working for the leader in oilfield services! Every day in communities and field operations around the globe we're collaborating, creating and contributing to Halliburton's customers, their shareholders, their employees. Explore Halliburton.jobs and discover what Halliburton has to offer:-
Please goes to the link below and Please don't hesitate, take action now:-
http://www.halliburton.com/careers/default.aspx?navid=745&pageid=4222
Careers fair at those University shown below
please click this link for more information:-
http://job-search.jobstreet.com.sg/singapore/job-opening.php?key=halliburton+far+east+pte+ltd&area=3&option=1&job-source=1,64&classified=1&job-posted=0&src=45&pg=1&sort=5&order=1&srcr=44&vtype=detail
The Experience the challenges, rewards and a world of opportunity working for the leader in oilfield services! Every day in communities and field operations around the globe we're collaborating, creating and contributing to Halliburton's customers, their shareholders, their employees. Explore Halliburton.jobs and discover what Halliburton has to offer:-
Please goes to the link below and Please don't hesitate, take action now:-
http://www.halliburton.com/careers/default.aspx?navid=745&pageid=4222
Careers fair at those University shown below
please click this link for more information:-
http://job-search.jobstreet.com.sg/singapore/job-opening.php?key=halliburton+far+east+pte+ltd&area=3&option=1&job-source=1,64&classified=1&job-posted=0&src=45&pg=1&sort=5&order=1&srcr=44&vtype=detail
Friday, January 7, 2011
Japan Will Drill for Methane Off Its Shores
September 27, 2010, 2:30 PM
By JOHN COLLINS RUDOLF
Japan will attempt to tap frozen methane gas deposits off its southeast coast by drilling a series of deep-sea test wells early next year, the Guardian newspaper reported on Monday.
The project will assess the commercial viability of tapping the deposits, called methane hydrates, which lie below thousands of feet of seawater and sediment. The drilling will be done by the Japan Oil, Gas and Metals National Corporation, in association with the Japanese government. The Japanese Ministry of Trade has requested more than $1 billion for the project, slated to begin in the spring.
Methane hydrates form in cold, high-pressure environments and are found throughout the world’s oceans and beneath the frozen ground of high-latitude countries. Methane is a clean-burning fuel, but is also a powerful greenhouse gas, with roughly 21 times the heat-trapping potential of carbon dioxide.
The energy content of the Earth’s methane hydrates — sometimes called “fire ice” or “ice that burns” — is vast, possibly greater than that of all other fossil fuels combined, according to the United States Department of Energy.
The gas deposits have yet to be tapped successfully on a commercial scale, but Japan, which lacks much in the way of domestic energy supplies and imports more than 99 percent of its oil, is at the forefront of efforts to do so.
In 2008, Japanese engineers extracted methane from hydrate deposits nearly a mile beneath the Canadian tundra, in what was hailed as a major breakthrough in the field. The Japanese government has declared its intention to commercially tap methane hydrates by 2018.
India and China have discovered huge frozen methane deposits off their own coasts, and both countries are seeking ways to develop the finds into commercially exploitable energy sources.
The environmental risks posed by undersea hydrates alarm some scientists and environmentalists, however. Potential dangers involve inadvertently setting off undersea landslides, which could wipe out nearby seafloor life, and uncontrollable methane leaks from destabilized gas and hydrate formations.
Massive eruptions of methane gas from melting or collapsing undersea hydrates have occurred naturally in the distant past as a result of rapid climate warming, studies have shown.
Yet engineers involved in the hydrate exploration projects and some energy experts discount the possibility that drilling could trigger massive accidental releases of methane.
“Can environmental disaster happen by gas hydrate production? The answer is no,” Koji Yamamoto, a project director for the Japan Oil, Gas and Metals National Corporation, told The Asia Times in December 2009.
By JOHN COLLINS RUDOLF
Japan will attempt to tap frozen methane gas deposits off its southeast coast by drilling a series of deep-sea test wells early next year, the Guardian newspaper reported on Monday.
The project will assess the commercial viability of tapping the deposits, called methane hydrates, which lie below thousands of feet of seawater and sediment. The drilling will be done by the Japan Oil, Gas and Metals National Corporation, in association with the Japanese government. The Japanese Ministry of Trade has requested more than $1 billion for the project, slated to begin in the spring.
Methane hydrates form in cold, high-pressure environments and are found throughout the world’s oceans and beneath the frozen ground of high-latitude countries. Methane is a clean-burning fuel, but is also a powerful greenhouse gas, with roughly 21 times the heat-trapping potential of carbon dioxide.
The energy content of the Earth’s methane hydrates — sometimes called “fire ice” or “ice that burns” — is vast, possibly greater than that of all other fossil fuels combined, according to the United States Department of Energy.
The gas deposits have yet to be tapped successfully on a commercial scale, but Japan, which lacks much in the way of domestic energy supplies and imports more than 99 percent of its oil, is at the forefront of efforts to do so.
In 2008, Japanese engineers extracted methane from hydrate deposits nearly a mile beneath the Canadian tundra, in what was hailed as a major breakthrough in the field. The Japanese government has declared its intention to commercially tap methane hydrates by 2018.
India and China have discovered huge frozen methane deposits off their own coasts, and both countries are seeking ways to develop the finds into commercially exploitable energy sources.
The environmental risks posed by undersea hydrates alarm some scientists and environmentalists, however. Potential dangers involve inadvertently setting off undersea landslides, which could wipe out nearby seafloor life, and uncontrollable methane leaks from destabilized gas and hydrate formations.
Massive eruptions of methane gas from melting or collapsing undersea hydrates have occurred naturally in the distant past as a result of rapid climate warming, studies have shown.
Yet engineers involved in the hydrate exploration projects and some energy experts discount the possibility that drilling could trigger massive accidental releases of methane.
“Can environmental disaster happen by gas hydrate production? The answer is no,” Koji Yamamoto, a project director for the Japan Oil, Gas and Metals National Corporation, told The Asia Times in December 2009.
Saturday, December 18, 2010
Halliburton 2010 GeoTap® IDS Sensor
http://www.halliburton.com/ps/Default.aspx?navid=2079&pageid=2857&prodid=PRN::KE3VG97MU
http://drillingcontractor.org/new-technology-allows-fluid-sampling-with-sensor-in-lwd-assembly-5637
This is the Halliburton Sperry Drilling 2010 spotlight on new technology.
To obtain fluid samples while drilling the well. Only available on wireline before, formation fluid sampling is now possible using LWD technology. The GeoTap® IDS sensor revolutionizes the industry by allowing downhole capture, identification and surface recovery of representative fluid samples on LWD. Built on the acclaimed GeoTap® formation pressure tester platform, the GeoTap IDS sensor delivers real-time reservoir characterization and helps eliminate the time and cost of wireline sampling.
GeoTap IDS Sensor Benefits:-
-Can reduce uncertainly in complex reservoirs
-Helps improve economic performance in high-cost deepwater environments
-Can eliminate costly wireline trips and associated rig time
-Get data within hours, not days, through reduced pump-out time
-Improve geo-correlation accuracy and geosteering capabilities
one trip down to the hole to get reservoirs data in realtime save time which is equal to save money, an innovative product also a value added product.
---------------------------------------------------------
GeoTap® Sensor
With Sperry Drilling services' GeoTap® LWD formation tester, it is possible to obtain real-time direct pore pressure measurements, with accuracy and precision comparable to that of wireline formation testers. The GeoTap service bridges a critical gap in drilling safety and optimization, providing early and reliable measurements of reservoir pressure and mud density.
Benefits:-
Helps improve formation evaluation.
-Obtain real-time fluid gradients and fluid mobility (permeability/viscosity indicator)
-Identify fluid contact points, and determine reservoir connectivity/compartmentalization, and depletion
Can increase safety of operation.
-Determine optimal mud weight and manage equivalent circulating density
-Know of pressure changes when they occur, not after it's too late
-Continuously update wellbore stability assessments
-Reduce formation damage
Helps increase drilling efficiency.
-Determine precise overbalance for maximizing ROP
-Continuously monitor hole cleaning effectiveness with Pressure-While-Drilling, while reducing formation damage due to swab/surge
Save time, money
reduce rig down time associated with wireline testing
Friday, November 5, 2010
Swell Packer by Easy Well Solutions
Swell Packer enables water control in open hole. Reliable and permanent annular isolation is normally required to enable water control in open hole completed wells. The Swell Packer, supplied by Easy Well Solutions is an annular isolation packer expanding and sealing in contact with hydrocarbons. Installation does not require any operations or manipulation. This saves rig time and increases reliability. The Swell Packer is installed across a formation barrier and left in place. It can be used for open hole and cased hole and is available for non-standard casing sizes.
In a mature North Sea field, North Cormorant, operated by Shell UK a through tubing drilling campaign was ongoing. The operations required zonal isolation from along the reservoir due to multiple intermittent layers with water and oil. Cementing these reservoirs was a challenge because of the small pipe diameters, ambitious drilling targets and high pressure contrasts. The operator performed a detailed analysis and found that Swell Packer would enhance the operations. No problems were associated with the installation. The packers provided better zonal isolation properties than cement. Perforating was avoided. By simplifications of the well design, the system has saved close to 50 percent of the total well cost.
In a shallow, viscous oil development in Alaska, U.S., an operator drilled multilateral wells to drain four zones. The bottom lateral was drilled undulating between two zones with five penetrations of the mudstone separating the zones. Previous wells have been plugged within a month after onset of production. To avoid this mudstone to mobilize and spread to plug adjacent slotted liner, a Swell Packer was positioned just above and just below each of these mudstone intervals. No plugging related production impairment has been seen in these wells.
To date, more than 250 Swell Packers have been installed in a multitude of downhole environments in different areas of the world. The installations has been with water control, open hole fracturing, sand control and many different applications. All installed packers have performed to expectation and no sealing failure has been detected.
Halliburton Swell packer link:-
http://www.halliburton.com/ps/default.aspx?navid=1235&pageid=79&prodgrpid=PRG::IXKIZ715
Baker Oil Tools' REPacker™
Reduce operational, HSE, and wellbore damage risks; cut overall cost
We offer several types of reactive element packers that are triggered by contact with well fluids. Our packers will cut your overall costs and reduce HSE and wellbore damage risks.
Our Baker Oil Tools' REPacker™ is a self-energizing, reactive-element, swelling-elastomer packer that provides a long-term barrier to annular flow around tubular assemblies in either open or cased-hole. No cement is required. It is ideal for deviated wells.
The highly reliable packer has no moving parts and is available in oil- and water-reactive, non-reversible elements. There is no risk of elastomer shrinkage if fluids are changed after swelling. Deployment and installation are simple and do not require running tools or specialized personnel.
The packer is a sealing device built on a casing pup that matches the mechanical properties of the liner. The activation methods for annular sealing are the swelling properties of the rubber element reacting with wellbore fluids. This packer can be used in openhole or perforated casing to isolate unwanted formation production.
The FORMpac™ expandable packer with reactive element technology eliminates annular flow around liner assemblies. It is a sealing device built on expandable solid pipe technology. The primary activation method for annular sealing is expansion of the solid pipe mandrel. The secondary activation method is the swelling properties of rubber in all hydrocarbons except very lean, single phase gas. This thermodynamic absorption expansion is continuous.
The tool can be used in openhole or perforated casing to isolate unwanted formation or production. The FORMpac packer provides a simple and effective method to eliminate the linear annular flow of fluids in cased and open holes with maximum pass-through ID. It will isolate troublesome shale in openhole completions. The packer can be used with both standard and expanding liners and sand control screens.
Our RCPacker is used in openhole wells to isolate unwanted formation production. When used together with our EQUALIZER™ inflow control device, it can efficiently manage flow in the annulus. The reactive core (RC) packer uses non-cement inflation media for permanent isolation in openhole completions.
A swelling reactive core is protected by an inflatable element. The initial seal provided by the inflatable element is less affected by downhole pressure and temperature changes after the core of the packer system has reacted with its inflation fluid. The element uses our XTremeZone™ technology for enhanced run-in capabilities, along with internal metal reinforcing on either end to provide high differential capability.
The REBarrier uses a self-energizing swelling elastomer to reduce the annular flow of fines and other wellbore debris in open or cased-hole. The packer is a sealing device built on a substrate that can be easily installed on your casing. The activation methods for annular sealing are the swelling properties of the rubber element reacting with the wellbore fluids.
Our REFlex™ field-installable reactive element packer is installed onto nominal API base pipe. The primary purpose of the tool is to add flexibility in deployment and further simplify your completions. The REFlex packer is built with a rigid steel cage that is surrounded by a proprietary Baker Hughes reactive element rubber matrix.
In a mature North Sea field, North Cormorant, operated by Shell UK a through tubing drilling campaign was ongoing. The operations required zonal isolation from along the reservoir due to multiple intermittent layers with water and oil. Cementing these reservoirs was a challenge because of the small pipe diameters, ambitious drilling targets and high pressure contrasts. The operator performed a detailed analysis and found that Swell Packer would enhance the operations. No problems were associated with the installation. The packers provided better zonal isolation properties than cement. Perforating was avoided. By simplifications of the well design, the system has saved close to 50 percent of the total well cost.
In a shallow, viscous oil development in Alaska, U.S., an operator drilled multilateral wells to drain four zones. The bottom lateral was drilled undulating between two zones with five penetrations of the mudstone separating the zones. Previous wells have been plugged within a month after onset of production. To avoid this mudstone to mobilize and spread to plug adjacent slotted liner, a Swell Packer was positioned just above and just below each of these mudstone intervals. No plugging related production impairment has been seen in these wells.
To date, more than 250 Swell Packers have been installed in a multitude of downhole environments in different areas of the world. The installations has been with water control, open hole fracturing, sand control and many different applications. All installed packers have performed to expectation and no sealing failure has been detected.
Halliburton Swell packer link:-
http://www.halliburton.com/ps/default.aspx?navid=1235&pageid=79&prodgrpid=PRG::IXKIZ715
Baker Oil Tools' REPacker™
Reduce operational, HSE, and wellbore damage risks; cut overall cost
We offer several types of reactive element packers that are triggered by contact with well fluids. Our packers will cut your overall costs and reduce HSE and wellbore damage risks.
Our Baker Oil Tools' REPacker™ is a self-energizing, reactive-element, swelling-elastomer packer that provides a long-term barrier to annular flow around tubular assemblies in either open or cased-hole. No cement is required. It is ideal for deviated wells.
The highly reliable packer has no moving parts and is available in oil- and water-reactive, non-reversible elements. There is no risk of elastomer shrinkage if fluids are changed after swelling. Deployment and installation are simple and do not require running tools or specialized personnel.
The packer is a sealing device built on a casing pup that matches the mechanical properties of the liner. The activation methods for annular sealing are the swelling properties of the rubber element reacting with wellbore fluids. This packer can be used in openhole or perforated casing to isolate unwanted formation production.
The FORMpac™ expandable packer with reactive element technology eliminates annular flow around liner assemblies. It is a sealing device built on expandable solid pipe technology. The primary activation method for annular sealing is expansion of the solid pipe mandrel. The secondary activation method is the swelling properties of rubber in all hydrocarbons except very lean, single phase gas. This thermodynamic absorption expansion is continuous.
The tool can be used in openhole or perforated casing to isolate unwanted formation or production. The FORMpac packer provides a simple and effective method to eliminate the linear annular flow of fluids in cased and open holes with maximum pass-through ID. It will isolate troublesome shale in openhole completions. The packer can be used with both standard and expanding liners and sand control screens.
Our RCPacker is used in openhole wells to isolate unwanted formation production. When used together with our EQUALIZER™ inflow control device, it can efficiently manage flow in the annulus. The reactive core (RC) packer uses non-cement inflation media for permanent isolation in openhole completions.
A swelling reactive core is protected by an inflatable element. The initial seal provided by the inflatable element is less affected by downhole pressure and temperature changes after the core of the packer system has reacted with its inflation fluid. The element uses our XTremeZone™ technology for enhanced run-in capabilities, along with internal metal reinforcing on either end to provide high differential capability.
The REBarrier uses a self-energizing swelling elastomer to reduce the annular flow of fines and other wellbore debris in open or cased-hole. The packer is a sealing device built on a substrate that can be easily installed on your casing. The activation methods for annular sealing are the swelling properties of the rubber element reacting with the wellbore fluids.
Our REFlex™ field-installable reactive element packer is installed onto nominal API base pipe. The primary purpose of the tool is to add flexibility in deployment and further simplify your completions. The REFlex packer is built with a rigid steel cage that is surrounded by a proprietary Baker Hughes reactive element rubber matrix.
Expandable Liner Hanger System
Liner systems
The Baker Hughes TORXS™ liner hanger system is the only expandable liner hanger system that can be run and installed conventionally, without requiring a critically timed high-pressure plug bump as the primary activation method for the hanger or packer, or for release of the running tool.
TORXS eliminates dependence on a plug bump, because all hydraulic activations, including tool release, occur with pressure acting on a positive seal in the running tool. This minimizes the risk of poor quality liner to cement bonding that can occur when a liner is ballooned with a highpressure plug bump.
The TORXS liner system—run on the TORXS liner running tool—can be run the same as any Baker Hughes premium liner system.
Upon reaching setting depth, the liner can be circulated and conditioned. A setting ball is dropped from the surface and landed on the extrudable ball seat in the running tool. Applied pressure actuates the hydraulic anchor along with the swage mechanism on the running tool causing the hanger body and slips to expand outward making permanent contact to the casing string. Circulation is again established and cementing of the liner can be performed.
This is Halliburton Expandable Liner Hanger link.
http://www.halliburton.com/divisions/default.aspx?pageid=1148&navid=439
The Baker Hughes TORXS™ liner hanger system is the only expandable liner hanger system that can be run and installed conventionally, without requiring a critically timed high-pressure plug bump as the primary activation method for the hanger or packer, or for release of the running tool.
TORXS eliminates dependence on a plug bump, because all hydraulic activations, including tool release, occur with pressure acting on a positive seal in the running tool. This minimizes the risk of poor quality liner to cement bonding that can occur when a liner is ballooned with a highpressure plug bump.
The TORXS liner system—run on the TORXS liner running tool—can be run the same as any Baker Hughes premium liner system.
Upon reaching setting depth, the liner can be circulated and conditioned. A setting ball is dropped from the surface and landed on the extrudable ball seat in the running tool. Applied pressure actuates the hydraulic anchor along with the swage mechanism on the running tool causing the hanger body and slips to expand outward making permanent contact to the casing string. Circulation is again established and cementing of the liner can be performed.
This is Halliburton Expandable Liner Hanger link.
http://www.halliburton.com/divisions/default.aspx?pageid=1148&navid=439
Sunday, October 31, 2010
News:- Double Blow for American Oil Dependency Hopes
Article From WSJ.com
EPA
The last few days have seen a double blow to American hopes for reducing its heavy dependence on imported oil.
1st, on Tuesday the U.S. Geological Survey cut by 90% its estimate of the undiscovered hydrocarbon reserves beneath the National Petroleum Reserve on Alaska’s North Slope–the richest region for onshore oil production in the country.
2nd, one of the largest oil and gas producers in the American, Royal Dutch Shell, revealed that the Deepwater Horizon accident and subsequent drilling moratorium will significantly reduce for several years its oil output from the Gulf of Mexico–the richest offshore area in the American It also unveiled its third quarter results.
Already unrealistic hopes that the American could mitigate the profound economic and security implications of weaning itself off foreign oil by dramatically boosting domestic output are more remote than ever.
The news from Alaska is actually even worse than its seems on first reading. The USGS cut its oil reserve estimate for the NPRA from 10.6 billion barrels of oil to 896 million barrels, because new wells show that much of what was assumed to be oil reservoirs in fact contain gas, which has a lower energy content.
Of course, gas reserves have value, but their development can be very difficult to justify in such remote locations. Two major Alaska oil producers, ConocoPhillips and BP, have been debating for years how to monetize the huge gas reserves they hold in North Slope oil fields, but have so far failed to find an economic solution. Their plans to build a $35 billion pipeline to carry the gas to towns and cities in the lower 48 states are being reassessed and may never come to pass.
The reappraisal of the NPRA also raises questions about how much oil really lies beneath the perennial bargaining chip in the contest between environmentalism and energy security, the Arctic National Wildlife Refuge.
On Thursday, Shell revealed that the moratorium on drilling imposed on the Gulf of Mexico in the wake of the Deepwater Horizon disaster will have an impact on its ability to produce oil from the region for several years.
The company’s output is already 10,000 barrels of oil equivalent (boe) a day lower than it would have been without the moratorium, because it has been prevented from doing development drilling to boost output at existing fields. That shortfall will be at least 40,000 boe a day in 2011, a fall of 15% from the expected level, and could rise further because of anticipated delays in the issuance of new permits now that the moratorium has been lifted, said Shell’s Chief Financial Officer Simon Henry.
Other companies have yet to disclose whether they will also suffer a 15% cut in their potential production from the region, but everyone has suffered similar effects from the moratorium.
The impact of this on the American economy could be profound. The Gulf of Mexico produced 1.6 million barrels of oil a day in 2009, almost 30% of total American crude oil production.
Shell’s operations in Alaska have also taken a hit. Its plans to drill in the promising Beaufort Sea off Alaska’s north slope are on hold for at least 12 months after permits to drill this year were withdrawn after the Deepwater Horizon disaster. Applications have been resubmitted, but the process may take longer than expected, Henry said.
Shell has not even resubmitted its even more contentious applications to drill in the neighboring Chukchi Sea.
The prospects of a dramatic boost in domestic American oil production look slimmer by the day. If the country is serious in its intention to wean itself off foreign oil, it’s time to switch the focus from billion-barrel reserves to miles per gallon.
EPA
The last few days have seen a double blow to American hopes for reducing its heavy dependence on imported oil.
1st, on Tuesday the U.S. Geological Survey cut by 90% its estimate of the undiscovered hydrocarbon reserves beneath the National Petroleum Reserve on Alaska’s North Slope–the richest region for onshore oil production in the country.
2nd, one of the largest oil and gas producers in the American, Royal Dutch Shell, revealed that the Deepwater Horizon accident and subsequent drilling moratorium will significantly reduce for several years its oil output from the Gulf of Mexico–the richest offshore area in the American It also unveiled its third quarter results.
Already unrealistic hopes that the American could mitigate the profound economic and security implications of weaning itself off foreign oil by dramatically boosting domestic output are more remote than ever.
The news from Alaska is actually even worse than its seems on first reading. The USGS cut its oil reserve estimate for the NPRA from 10.6 billion barrels of oil to 896 million barrels, because new wells show that much of what was assumed to be oil reservoirs in fact contain gas, which has a lower energy content.
Of course, gas reserves have value, but their development can be very difficult to justify in such remote locations. Two major Alaska oil producers, ConocoPhillips and BP, have been debating for years how to monetize the huge gas reserves they hold in North Slope oil fields, but have so far failed to find an economic solution. Their plans to build a $35 billion pipeline to carry the gas to towns and cities in the lower 48 states are being reassessed and may never come to pass.
The reappraisal of the NPRA also raises questions about how much oil really lies beneath the perennial bargaining chip in the contest between environmentalism and energy security, the Arctic National Wildlife Refuge.
On Thursday, Shell revealed that the moratorium on drilling imposed on the Gulf of Mexico in the wake of the Deepwater Horizon disaster will have an impact on its ability to produce oil from the region for several years.
The company’s output is already 10,000 barrels of oil equivalent (boe) a day lower than it would have been without the moratorium, because it has been prevented from doing development drilling to boost output at existing fields. That shortfall will be at least 40,000 boe a day in 2011, a fall of 15% from the expected level, and could rise further because of anticipated delays in the issuance of new permits now that the moratorium has been lifted, said Shell’s Chief Financial Officer Simon Henry.
Other companies have yet to disclose whether they will also suffer a 15% cut in their potential production from the region, but everyone has suffered similar effects from the moratorium.
The impact of this on the American economy could be profound. The Gulf of Mexico produced 1.6 million barrels of oil a day in 2009, almost 30% of total American crude oil production.
Shell’s operations in Alaska have also taken a hit. Its plans to drill in the promising Beaufort Sea off Alaska’s north slope are on hold for at least 12 months after permits to drill this year were withdrawn after the Deepwater Horizon disaster. Applications have been resubmitted, but the process may take longer than expected, Henry said.
Shell has not even resubmitted its even more contentious applications to drill in the neighboring Chukchi Sea.
The prospects of a dramatic boost in domestic American oil production look slimmer by the day. If the country is serious in its intention to wean itself off foreign oil, it’s time to switch the focus from billion-barrel reserves to miles per gallon.
Saturday, October 16, 2010
Blowout preventer
Cameron Int'l Corporation's EVO Ram BOP Drawing.
Hydril Annular BOP Drawing.
Blowout preventer
The blow-out preventer is a large, specialized valve used to seal, control & monitor oil and gas wells. Blow-out preventers were developed for coping with extreme erratic pressures and uncontrolled flow (formation kick) emanating from a well reservoir during drilling. Kicks can lead to a potentially catastrophic event known as a blow-out. In addition to controlling the down-hole (occurring in the drilled hole) pressure and the flow of oil and gas, blow-out preventers are intended to prevent tubing (e.g. drill pipe and well casing), tools and drilling fluid from being blown out of the wellbore (also known as bore hole, the hole leading to the reservoir) when a blow-out threatens. blow-out preventers are critical to the safety of crew, rig (the equipment system used to drill a wellbore) and environment, and to the monitoring and maintenance of well integrity; thus blow-out preventers are intended to be fail-safe devices.
That term BOP (an initialism rather than spoken as a word, i.e.- pronounced 'B' 'O' 'P') is used in oilfield vernacular to refer to blow-out preventers.
The abbreviated term preventer, usually prefaced by a type (e.g. ram preventer), is used to refer to a single blow-out preventer unit. A blow-out preventer may also simply be referred to by its type (e.g. ram).
The terms blow-out preventer, blow-out preventer stack and blow-out preventer system are commonly used interchangeably and in a general manner to describe an assembly of several stacked blow-out preventers of varying type and function, as well as auxiliary components. A typical subsea deepwater blow-out preventer system includes components such as electrical and hydraulic lines, control pods, hydraulic accumulators, test valve, kill and choke lines and valves, riser joint, hydraulic connectors, and a support frame.
Two categories of blow-out preventer are most prevalent: ram and annular. BOP stacks frequently utilize both types, typically with at least one annular BOP stacked above several ram BOPs.
(A related valve, called an inside blow-out preventer, internal blow-out preventer, or IBOP, is positioned within, and restricts flow up, the drillpipe. This article does not address inside blow-out preventer use.)
blow-out preventers are used at land and offshore rigs, and subsea. Land and subsea BOPs are secured to the top of the wellbore, known as the wellhead. BOPs on offshore rigs are mounted below the rig deck. Subsea BOPs are connected to the offshore rig above by a drilling riser that provides a continuous pathway for the drill string and fluids emanating from the wellbore. In effect, a riser extends the wellbore to the rig.
Use of blow-out preventer:-
The invention of blow-out preventers was instrumental in reducing the incidence of oil gushers, blow-outs, which are dangerous and costly.

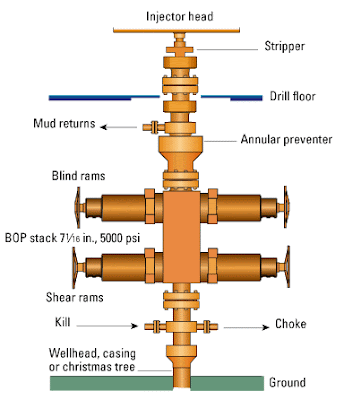

blow-out preventers come in a variety of styles, sizes and pressure ratings. Several individual units serving various functions are combined to compose a blow-out preventer stack. Multiple blow-out preventers of the same type are frequently provided for redundancy, an important factor in the effectiveness of fail-safe devices.
The primary functions of a blow-out preventer system are to
Confine well fluid to the wellbore;
Provide means to add fluid to the wellbore;
Allow controlled volumes of fluid to be withdrawn from the wellbore.
Additionally, and in performing those primary functions, blow-out preventer systems are used to:
Regulate and monitor wellbore pressure;
Center and hang off the drill string in the wellbore;
Shut in the well (e.g. seal the void, annulus, between drillpipe and casing);
“Kill” the well (prevent the flow of formation fluid, influx, from the reservoir into the wellbore) ;
Seal the wellhead (close off the wellbore);
Sever the casing or drill pipe (in case of emergencies).
In drilling a typical high-pressure well, drill strings are routed through a blow-out preventer stack toward the reservoir of oil and gas. As the well is drilled, drilling fluid, “mud,” is fed through the drill string down to the drill bit, “blade,” and returns up the wellbore in the ring-shaped void, annulus, between the outside of the drill pipe and the casing (piping that lines the wellbore). The column of drilling mud exerts downward hydrostatic pressure to counter opposing pressure from the formation being drilled, allowing drilling to proceed.
When a kick (influx of formation fluid) occurs, rig operators or automatic systems close the blow-out preventer units, sealing the annulus to stop the flow of fluids out of the wellbore. Denser mud is then circulated into the wellbore down the drill string, up the annulus and out through the choke line at the base of the BOP stack through chokes (flow restrictors) until down-hole pressure is overcome. Once “kill weight” mud extends from the bottom of the well to the top, the well has been “killed”. If the integrity of the well is intact drilling may be resumed. Alternatively, if circulation is not feasible it may be possible to kill the well by "bullheading", forcibly pumping, in the heavier mud from the top through the kill line connection at the base of the stack. This is less desirable because of the higher surface pressures likely needed and the fact that much of the mud originally in the annulus must be forced into receptive formations in the open hole section beneath the deepest casing shoe.
If the blow-out preventers and mud do not restrict the upward pressures of a kick, a blow-out results, potentially shooting tubing, oil and gas up the wellbore, damaging the rig, and leaving well integrity in question.
Since BOPs are important for the safety of the crew and natural environment, as well as the drilling rig and the wellbore itself, authorities recommend, and regulations require, that BOPs be regularly inspected, tested and refurbished. Tests vary from daily test of functions on critical wells to monthly or less frequent testing on wells with low likelihood of control problems.
Exploitable reservoirs of oil and gas are increasingly rare and remote, leading to increased subsea deepwater well exploration and requiring BOPs to remain submerged for as long as a year in extreme conditions. As a result, BOP assemblies have grown larger and heavier (e.g. a single ram-type BOP unit can weigh in excess of 30,000 pounds), while the space allotted for BOP stacks on existing offshore rigs has not grown commensurately. Thus a key focus in the technological development of BOPs over the last two decades has been limiting their footprint and weight while simultaneously increasing safe operating capacity.
Wednesday, September 15, 2010
What Is Fracking or hydraulic fracturing?
A controversial process for extracting natural gas from shale, is drawing criticism as opponents question what effects pumping thousands of gallons of water and chemicals underground will have.
The Christian Science Monitor reported that public hearings being held in Binghamton, N.Y., drew hundreds of protesters on Monday. The hearings are part of the Environmental Protection Agency's investigation into how fracking affects people and the environment.
The EPA explained that hydraulic fracturing is a process used to extract underground resources such as oil, natural gas and geothermal energy. It involves the pressurized injection of water and chemical additives into a geologic formation in hopes that the pressure is enough to exceed the strength of the rock and enlarge fractu
res in it.
"Propping agents" s
uch as sand or ceramic beads are pumped into the fractures to keep them open and pumping pressure is released as the fracturing fluids return to the surface. Natural gas will then flow from pores and fractures in the rock into a well that will extract more.
The EPA is attempting to determine whether, among other concerns, there could be any effects on drinking water supplies.
Philly.com reported that the hearings have drawn strong views on both sides. Those against it hope that the
EPA study will prove that fracking is an environmental danger that needs to be regulated or banned by the federal government.
Rep. Maurice Hinchey (D-N.Y.), said fracking has been linked to "numerous reports of water contamination" nationwide.
The gas industry fears new restrictions could impair the industry which it said is one of the few current economic bright spots in and around Pennsylvania.
"Now is especially not the time to furthe
r limit energy-job opportunities for those in need," John Harmon of the African American Chamber of Commerce testified at a hearing.
PERFORATING
Since the pay zone is sealed off by the production string and cement, perforations must be made in order for the oil or gas to flow into the wellbore. Perforations are simply holes that are made through the casing and cement and extend some distance into the formation. The most common method of perforating incorporates shaped-charge explosives (similar to those used in armor-piercing
shells). Shaped charges accomplish penetration by creating a jet of high-pressure, high-velocity gas. The charges are arranged in a tool called a gun that is lowered into the well opposite the producing zone. Usually the gun is lowered in on wireline (1). When the gun is in position, the charges are fired by electronic means from the surface (2). After the perforations are made, the tool is retrieved (3). Perforating is usually performed by a service company that specializes in this technique.
ACIDIZING
Sometimes, however, petroleum exists in a formation but is unable to flow readily into the well because the formation has very low permeability. If the formation is composed of rocks that dissolve upon being contacted by acid, such as limestone or dolomite, then a technique known as acidizing may be required. Acidizing is usually performed by an acidizing service company and may be done before the rig is moved off the well; or it can also be done after the rig is moved away. In any case, the acidizing operation basically consists of pumping anywhere from fifty to thousands of gallons of acid down the well. The acid travels down the tubing, enters the perforations, and contacts the formation. Continued pumping forces the acid into the formation where it etches channels – channels that provide a way for the formation’s oil or gas to enter the well through the perforations.
FRACTURING
When sandstone rocks contain oil or gas in commercial quantities but the permeability is too low to permit good recovery, a process called fracturing may be used to increase permeability to a practical level. Basically, to fracture a formation, a fracturing service company pumps a specially blended fluid down the well and into the formation under great pressure. Pumping continues until the formation literally cracks open. Meanwhile, sand, walnut hulls, or aluminum pellets are mixed into the fracturing fluid. These materials are called proppants. The proppant enters the fractures in the formation, and, when pumping is stopped and the pressure allowed to dissipate, the proppant remains in the fractures. Since the fractures try to close back together after the pressure on the well is released, the proppant is needed to hold or prop the fractures open. These propped-open fractures provide passages for oil or gas to flow into the well. See figure to the right.
Saturday, August 21, 2010
Electric Submersible Pumping system (ESP) - weatherford
There is a number of company come out the ESP, that is Electric Submersible Pumping system from Weatherford, Baker huge, Schlumberger, Halliburton and BJ Services.
ESP is in secondary plan for recovery oil.
The link here is a web site from baidu's document upload that shown Halliburton BDMI on ESP.
ESP is in secondary plan for recovery oil.
The link here is a web site from baidu's document upload that shown Halliburton BDMI on ESP.
Gas Lift Technology
Gas Lift is also used in secondary recovery, the video below will show you how weatherford do it.
Gas lift valve is used to releasing of CO2 that make the Oil lighter (to make oil density lighter by gas lift method, because gas is lighter than Oil in density will help to get the oil float to the surface)
Oil and Gas Recovery Demonstration (The secondary recovery plan.)
The secondary recovery plan.
This video will show you how the oil and gas recovery is done by injecting Gas (CO2) and water.
There is other recovery that used only brine water injection or "water injection" for recovery oil and gas where the remaining oil and gas in the well left about 40% or less that are difficult to recover by conventional completion equipment.
This type of secondary recovery plan will be deploy until the well is fully depleted that unable to recover anymore of oil and gas.
What is "well completion"?
A Well completion need a number of equipments/devices to joint in a series to form a Well completion string and run down in hole for oil production or oil recovery.
who are those Well completion companies?
company like:- smith international, Baker huge, Halliburton, Schlumberger, Weatherford and BJ services
Those equipments sometime needed running tool / puuling tool to run, pulled or set the packer
(Equipment that like production permanent packer, lock mandrel, Sliding side door (SSD) and some other locking device that used in well.)
who are those Well completion companies?
company like:- smith international, Baker huge, Halliburton, Schlumberger, Weatherford and BJ services
Saturday, July 19, 2008
Nanosolar
Nanosolar is a global leader in solar power innovation. They are setting the standard for affordable green power with solar cell technology of distinctly superior cost efficiency, versatility, and availability.
Their mission is very simple: Delivering cost-efficient solar electricity.
Leveraging recent science in nanostructured materials, we have developed a critical mass of engineering advances that profoundly change the cost efficiency and production scalability of solar electricity cells and panels.
Their first product, the Nanosolar Utility Panel™ enables unprecedented system economics at utility scale.
Founded in 2002, They are building the world's largest solar cell factory in California and the world's largest panel-assembly factory in Germany.
Nanosolar's 140,000 sqft facility in San Jose, California
Nanosolar's 507,000 sqft manufacturing site near Berlin, Germany
Picken's Plan
T. Boone Pickens, founder and chairman, BP Capital Management, is principally responsible for the formulation of the energy futures investment strategy of the BP Capital Commodity Fund and the BP Capital Equity Fund. With more than $4 billion under management, BP Capital manages one of the nation’s most successful energy-oriented investment funds. Pickens frequently utilizes his wealth of experience in the oil and gas industry in the evaluation of potential equity investments and energy sector themes. He has not been shy in predicting oil and gas prices and — more often than not — has been uncannily accurate.
Pickens is also aggressively pursuing a wide range of other business interests, from water marketing and ranch development initiatives to Clean Energy, a company he founded and is the largest shareholder. Through Mesa Water, Pickens is the largest private holder of permitted groundwater rights in the United States. Clean Energy is advancing the use of natural gas as a cleaner-burning and more cost-effective transportation fuel alternative to gasoline and diesel.
Boone grew up in Holdenville, a small eastern Oklahoma town. His father was in the oil business, and his mother ran the Office of Price Administration during World War II, rationing gasoline and other goods for four counties. Boone attributes much of his success to his mother and father.
Boone graduated as a geologist from Oklahoma State University in 1951 and started work with Phillips Petroleum Co. in Bartlesville, Oklahoma. After three and a half years, he struck out on his own as an independent geologist. Pickens was founder of Mesa Petroleum in its various forms beginning in 1956. Mr. Pickens’ career at Mesa spanned four decades. Under his leadership, Mesa grew to become one of the largest and most well known independent exploration and production companies in the United States; Mesa produced more than 3 trillion cubic feet of gas and 150 million barrels of oil from 1964 to 1996.
From its inception, Mesa was at the forefront of change and innovation. Mesa's fitness program is a good example. Boone has long understood the benefits of physical fitness. Mesa's fitness program has become a model for corporate America, and Mesa was the first company to be accredited by the Institute for Aerobics Research.
Throughout his professional life, Pickens has been a generous philanthropist, giving away almost one half of a billion dollars. In 2006, he contributed $175 million to a wide range of causes and the formation of the T. Boone Pickens Foundation. He has appeared multiple times on The Chronicle of Philanthropy’s list of top U.S. philanthropists. The T. Boone Pickens Foundation is improving lives through grants supporting educational programs, medical research, athletics and corporate wellness, at-risk youth, the entrepreneurial process, and conservation and wildlife initiatives.
The Horatio Alger Association of Distinguished Americans Inc. selected Pickens as a recipient of the 2006 Horatio Alger Award, which epitomizes those who overcome adversity and humble beginnings to achieve success. It is but one of many honors awarded to Pickens for his achievements, including Trader Monthly’s 2006 Trader of the Year award, the Texas Business Hall of Fame, and the Oklahoma Hall of Fame.
Pickens lives in Dallas and is married to Madeleine Ann Pickens. He has five children and 12 grandchildren.
Saturday, March 29, 2008
What is Fusion power?
Internal view of the JET tokamak superimposed with an image of a plasma taken with a visible spectrum video camera. © EFDA-JETFusion Power maybe the next generation power source for man kind. Plasma is very useful in this Fusion Power, it shield the heat from the nuclear fusion.
Fusion power refers to power generated by nuclear fusion reactions. In this kind of reaction, two light atomic nuclei fuse together to form a heavier nucleus and in doing so, release energy. In a more general sense, the term can also refer to the production of net usable power from a fusion source, similar to the usage of the term "steam power." Most design studies for fusion power plants involve using the fusion reactions to create heat, which is then used to operate a steam turbine, similar to most coal-fired power stations as well as fission-driven nuclear power stations.
The largest current experiment is the Joint European Torus [JET]. In 1997, JET produced a peak of 16.1 MW of fusion power (65% of input power), with fusion power of over 10 MW sustained for over 0.5 sec. In June 2005, the construction of the experimental reactor ITER, designed to produce several times more fusion power than the power put into the plasma over many minutes, was announced. The production of net electrical power from fusion is planned for DEMO, the next generation experiment after ITER.
Fuel cycle
The basic concept behind any fusion reaction is to bring two or more atoms very close together, close enough that the strong nuclear force in their nuclei will pull them together into one larger atom. If two light nuclei fuse, they will generally form a single nucleus with a slightly smaller mass than the sum of their original masses. The difference in mass is released as energy according to Einstein's mass-energy equivalence formula E = mc². If the input atoms are sufficiently massive, the resulting fusion product will be heavier than the reactants, in which case the reaction requires an external source of energy. The dividing line between "light" and "heavy" is iron. Above this atomic mass, energy will generally be released in nuclear fission reactions, below it, in fusion.
The Sun is a natural fusion reactor.
Fusion between the atoms is opposed by their shared electrical charge, specifically the net positive charge of the nuclei. In order to overcome this electrostatic force, or "Coulomb barrier", some external source of energy must be supplied. The easiest way to do this is to heat the atoms, which has the side effect of stripping the electrons from the atoms and leaving them as bare nuclei. In most experiments the nuclei and electrons are left in a fluid known as a plasma. The temperatures required to provide the nuclei with enough energy to overcome their repulsion is a function of the total charge, so hydrogen, which has the smallest nuclear charge therefore reacts at the lowest temperature. Helium has an extremely low mass per nucleon and therefore is energetically favoured as a fusion product. As a consequence, most fusion reactions combine isotopes of hydrogen ("protium", deuterium, or tritium) to form isotopes of helium (³He or 4He).
